As mentioned in earlier post , the essential idea about launching this series is to share daily experience, design tips, troubleshooting, management tips or industry trends , so Episode 1 will be purely about the heart of every AV system for meeting room, collaboration office, briefing room, multipurpose hall,,,,,,,, the AV rack room in other terms the backbone of reliable system.

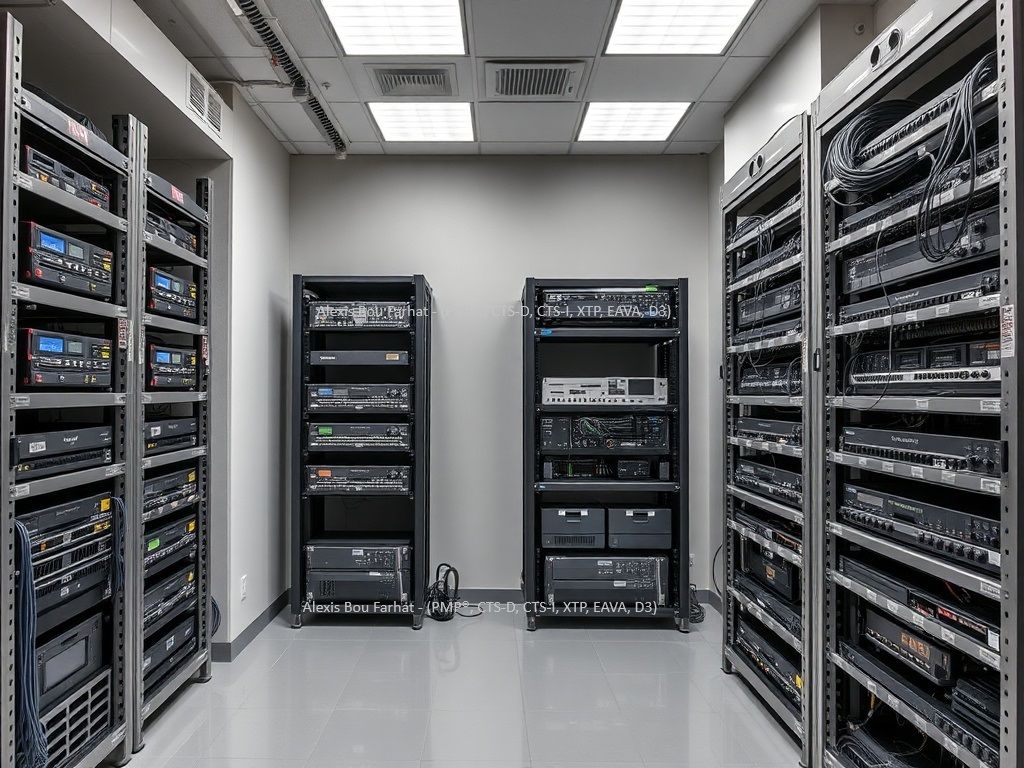

In professional AV and ELV projects, the rack room is often overlooked, but it is truly the heart of the system. A well-designed AV rack room ensures seamless operation, simplifies maintenance, and extends the life of your equipment. It’s much more than just a storage space; it’s where systems are terminated, cross-connected, and interconnected to guarantee consistent performance and reliability.

📋 Key Design Guidelines for AV Rack Rooms:

1. Security & Accessibility :
   Ensure controlled access to protect sensitive equipment while allowing authorized personnel to perform maintenance efficiently.

2. Acoustic Control :
   AV rack rooms can generate significant noise from cooling fans and equipment. Proper acoustic treatment helps maintain a comfortable environment for staff nearby.

3. Proper Clearances & Ventilation :
   The biggest challenge in designing AV rack rooms is managing heat, cable organization, and accessibility. Cramped or small rack spaces reduce airflow, make maintenance difficult, and can shorten equipment lifespan. A well-structured design with proper clearances and airflow ensures reliability and easier maintenance.

4. Cable Management, Labeling & Color Coding :
   Proper labeling and color coding are critical. The most frustrating issue during maintenance is poorly labeled cables, which makes troubleshooting time-consuming and prone to errors. Clearly labeled cables simplify upgrades, repairs, and fault-finding, improving overall system efficiency.

5. Lighting & Visibility :
   Adequate lighting at service points is crucial for installation, inspection, and ongoing maintenance.

6. Environmental & Safety Protection :
   Control temperature and humidity, provide proper grounding, and install fire suppression and flood prevention measures. Avoid storing combustible or corrosive materials inside the rack room.

Best Practices in Multi-Floor Buildings:
Whenever possible, AV rack rooms should be vertically aligned to simplify cable pathways, reduce conduit runs, and minimize signal distribution complexity.

Discussion Point for AVIXA Xchange Community:
From your experience, what is the biggest challenge when designing or maintaining an AV rack room? Is it heat management, cable labeling, accessibility, or something else?

Some questions for AV Community :

a. When planning a new AV rack room, which design element do you prioritize first—cooling, cable management, or security? Why?

b. What’s your go-to cable labeling system (colors, numbers, barcodes, software)?

c. Have you ever faced a situation where poor ventilation caused equipment failure? How did you solve it?

d. For multi-floor projects, do you prefer centralized rack rooms or distributed racks? What are the pros and cons from your experience?

Key Takeaway: Proper cable labeling is arguably the most important element for troubleshooting. When cables are clearly marked, maintenance becomes far more efficient, reducing downtime and stress for engineers.
