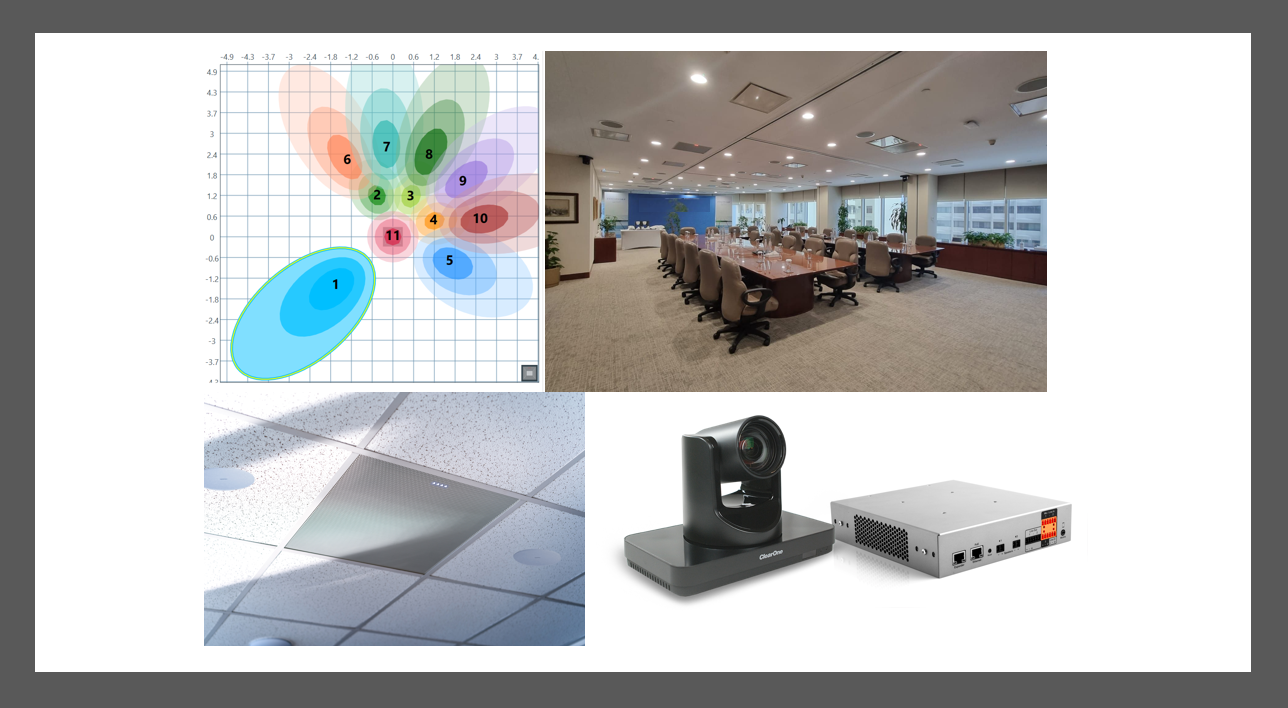

Advanced Multi-zone Voice Lift capability built into the BMA360 system ensured everyone is heard in-room while audio is independently transmitted to the remote end. Intelligent Beamswitching with Beamreporting ensured an appropriate UNITE camera is switched, and the preset is recalled to cover the active talker to ensure meeting equity.

O B J E C T I V E S
A critical requirement was the capability to hold large town hall-type meetings that could be attended by the senior management and provide local sound reinforcement and camera tracking to a large meeting room with changing seating layouts. The customer wanted to use the maximum possible distance with Cisco AI-based camera tracking up to 8mtrs and then video capture the rest of the 10mtrs using an automated camera tracking based on beam reporting functionality from BMA 360
system.

E Q U I P M E N T S  U S E D
6nos x C1 BMA 360 Freq Invariant Ceiling Tile with Built in Amps [ BMA 360 Product Video]
2nos x C1 CONVERGE PRO2 DSP Mixers [ CONVERGE Pro2 Product Video ]
4nos x C1 UNITE 200Pro PTZ cameras [ UNITE Cameras Product Video ]
1no x Cisco Room Kit Pro Codec
1no x Cisco Touch 10 Control Touchpanel
1no x Crestron CP4 Control processor
12nos x C1 LS6CT Ceiling Speakers

S O L U T I O N
With ClearOne's unique multi-zone voice lift technology of the BMA 360, this large flexible room now allows every attendee to be heard distinctly without passing a microphone around or
repositioning themselves within the space. Advanced DSP algorithms FiBeam, DsBeam, and DARE feedback elimination provided an additional 12dB feedback stability margin to achieve simultaneous conferencing and voice-lift functions. ClearOne'sbeam reporting and daisy-chained P-Link architecture made all six beamformers work together as a single system, ensuring those beams after an 8mtrs distance is switched and recalling the appropriate camera and preset.

ClearOne'sregional partner YYFAKHRO, Bahrain, worked closely with multiple stakeholders to deliver the project on time. The ClearOne architecture offers easy setup and configuration for foolproof installation, benefiting AV practitioners. End-users also benefit from the BMA 360's reduced overall system cost for maximum return on investment.
