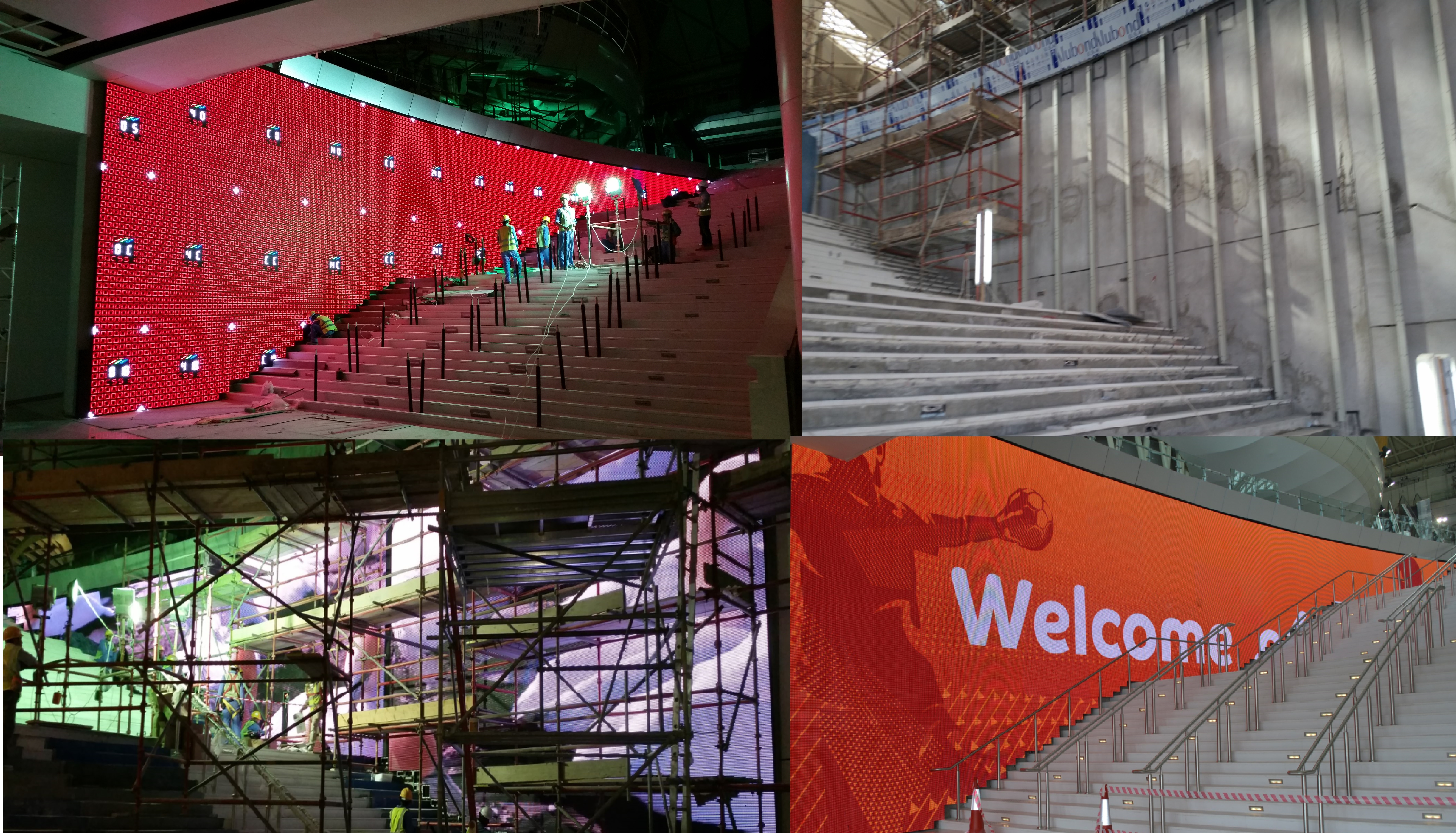

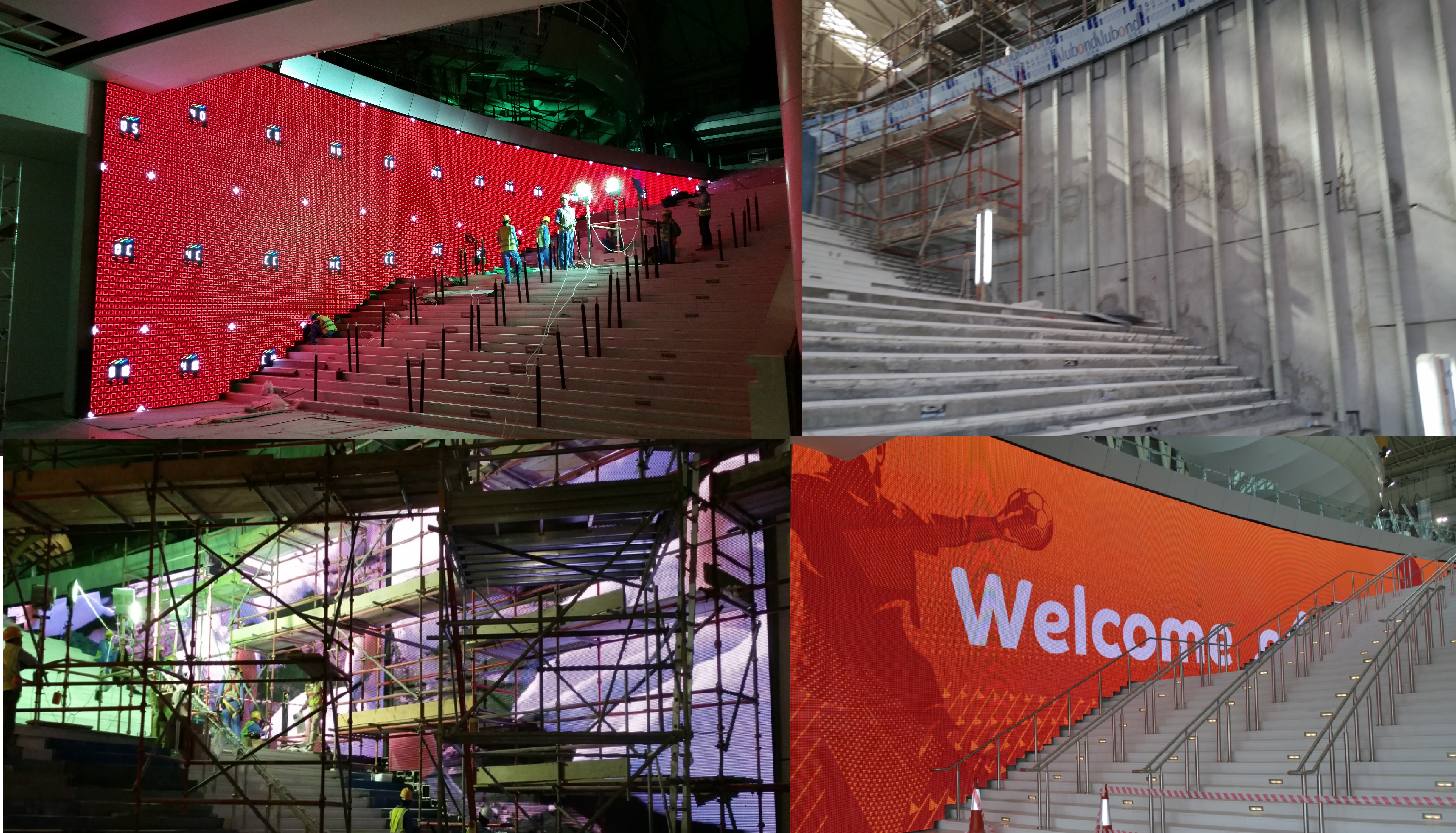

Over 12 years ago, I had the privilege of leading one of the most technically intricate and rewarding projects of my career: the installation of four expansive LED walls at the South and North Main Staircases entrances of a multipurpose sports hall. Each wall, measuring 3,000 square feet, was part of a transformative infrastructure project designed to meet the rigorous demands of international sporting events.

This endeavor required meticulous planning, technical precision and seamless collaboration across multiple disciplines. Below is a detailed breakdown of the design planning and implementation phases that ensured the project’s success.

1. Coordination with the Main Contractor and LED Manufacturer:

• The project involved iterative coordination between the LED manufacturer’s technical team and the main contractor civil/architect team to refine the design for the curved staircase walls. Advanced 3D CAD models were employed to simulate the curvature and determine the ideal placement and fixation of the LED modules.
• A structural engineering team conducted Finite Element Analysis (FEA) to ensure the staircase walls could bear the combined load of the metal support beams, LED modules and auxiliary equipment.

2. Civil Survey and Beam Fixation:

• Advanced total station instruments and laser levels were utilized to ensure sub-millimeter accuracy in marking fixation points for the beams by utilizing Surveying equipment.
• Strict tolerances were defined, allowing a maximum deviation of ±0.5mm to ensure alignment across the expansive wall dimensions.

3. Installation of Fixation Points:

• High-strength Hilti roll bolts M10, treated with corrosion-resistant coatings, were used to ensure durability in high-load scenarios.
• Component epoxy adhesives were chosen for their superior bonding properties and resistance to shear forces, critical for the longevity of the installation.
• Each drilled hole was cleaned using compressed air, rush kits and chemical fixation to ensure optimal adhesion. Digital torque wrenches were employed to secure roll bolts to the specified torque values.

4. Scaffolding and Beam Installation:

• Custom Metal scaffolding systems, designed to support vertical and lateral loads, were erected at a distance of 1 meter from the wall. These systems were compliant with international safety standards.
• Mechanical chain hoists were used to position the beams. Laser alignment tools, such as rotary lasers and inclinometers, ensured precise vertical and horizontal alignment.

5. Logistics and LED Module Storage:

• Airfreighting was coordinated with the manufacturer to minimize transit times. Each shipment was tracked with RFID tags for real-time monitoring.
• Modules were stored in climate-controlled environments to protect sensitive electronic components from temperature fluctuations and humidity.

6. Power and Data Connectivity:

• Power outlets were installed behind the beams, with circuits rated to handle the high current demands of LED modules. Surge protection devices were integrated to prevent damage from voltage spikes.
• Cat6 shielded twisted-pair cables were used to mitigate electromagnetic interference. Redundant data loops were created to ensure uninterrupted connectivity in the event of cable failure.
• Digital temperature sensors, integrated into the LED modules, were connected to the control system to enable real-time monitoring and automatic alerts in case of overheating.

7. Assembly and Installation of LED Modules:

• Each module was labeled with unique identifiers to match the schematic diagram, ensuring proper sequence during assembly.
• Precision alignment jigs and laser guides were employed to maintain uniform gaps and consistent pixel alignment.
• Modules were installed in sections, starting from the bottom and progressing upwards, with periodic checks for alignment and connectivity.

8. Specialized Installation Teams:

• Responsible for securing each module to the structural beams using anti-vibration mounts to prevent misalignment from environmental factors.
• Utilized optical alignment tools to ensure pixel rows were perfectly level, preventing visual artifacts.
• Focused on connecting power and data cables, ensuring compliance with the detailed wiring schematics.

9. Media Controller and Fiber Optic Integration:

• LED media controllers installed in Back side wall mount Rack were programmed to manage the high-resolution pixel pitch of the walls, ensuring seamless content playback.
• Multimode fiber optic cables were used for high-speed data transmission between the control room in level 02 and all 4 LED staircase walls.

10. Calibration and Alignment:

• Manufacturer-provided software was used to detect and correct pixel-level brightness and color inconsistencies.
• High-resolution cameras were employed to scan the entire wall, identifying areas requiring adjustment.

11. Pre-Commissioning and Testing:

• Light meters and spectrophotometers were used to verify compliance with specified luminance and chromaticity levels.
• Checking thermal software’s monitored heat distribution across the LED modules to ensure effective cooling.

12. Challenges and Constraints:

• Accelerated timelines required round-the-clock shifts, with teams operating under stringent deadlines.
• Enhanced safety measures were implemented, including harnesses, safety nets and real-time monitoring of scaffolding stability.
• Dust and debris from ongoing construction necessitated protective coverings for sensitive electronic components.

Finally, the installation of these monumental LED walls was a testament to the power of technical expertise ,complex design engineering and collaboration. By employing cutting-edge tools, adhering to rigorous standards and maintaining unwavering attention to detail, we achieved a flawless implementation that elevated the venue to international standards.

The experience not only honed my technical and project management skills but also underscored the importance of innovation and teamwork in tackling complex challenges.
