In high-demand institutional environments, the key question is not which technology is the newest, but which can remain relevant for years without losing stability or the ability to evolve.

That was exactly the case when the Bolsa Institucional de Valores (BIVA) planned its new headquarters at Torre Esmeralda in Mexico City. From the outset, the goal was clear: to create an audiovisual environment capable of supporting live presentations, internal communications, high-profile events, and continuous operation—all under the reliability standards required by the financial sector.

The solution needed to meet three essential conditions: high stability, intuitive operation, and true long-term scalability. Read on to discover how this was achieved.

A Two-Phase Project (With an Upgrade Path in Mind)

The system was implemented in two stages. In 2018, common areas, the trading floor, lobby, and monitoring zones were deployed. In 2019, the main auditorium was completed, followed by an upgrade from HD to 4K in common areas in 2023.

The system was not replaced, it was upgraded, speaking to an architecture designed for evolution.

BIVA partnered with integrator Kolo, adopting AV-over-IP technology from MuxLab as the core of its signal distribution.

Technical Architecture: Flexible Distribution and Centralized Control

The auditorium includes:

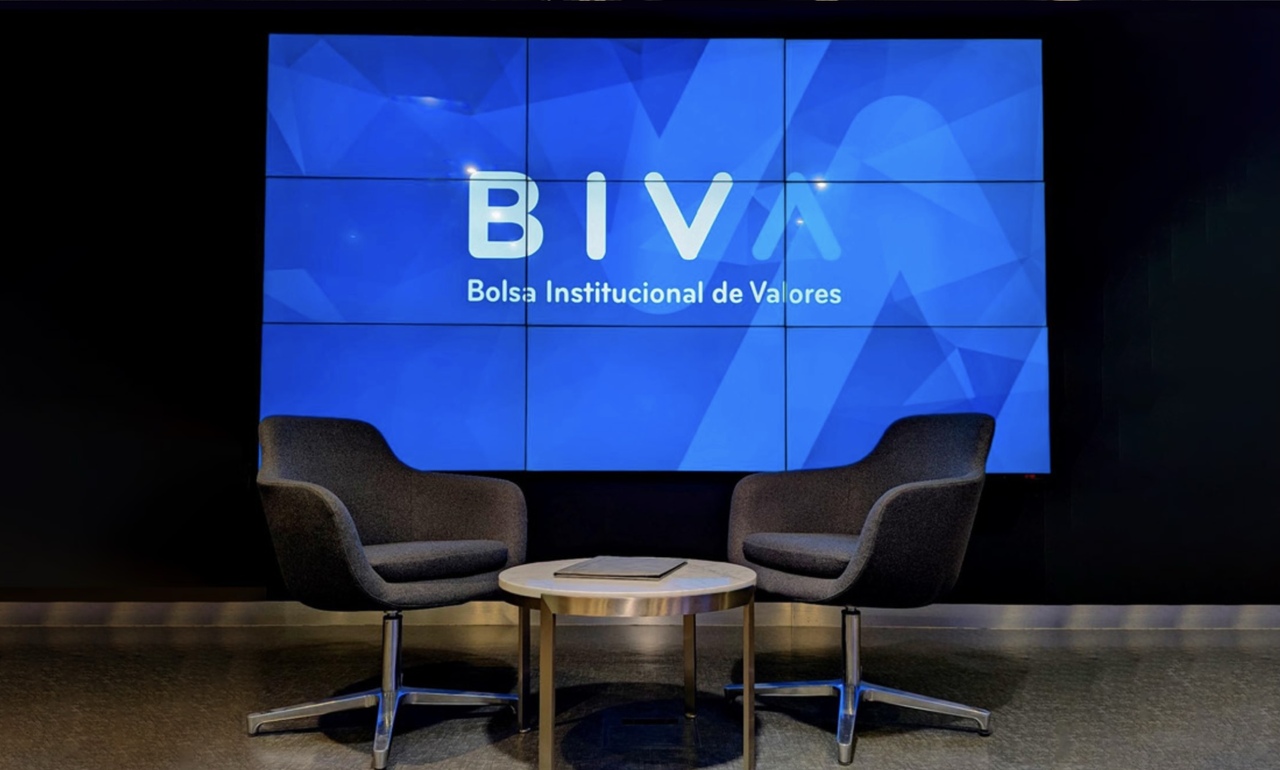

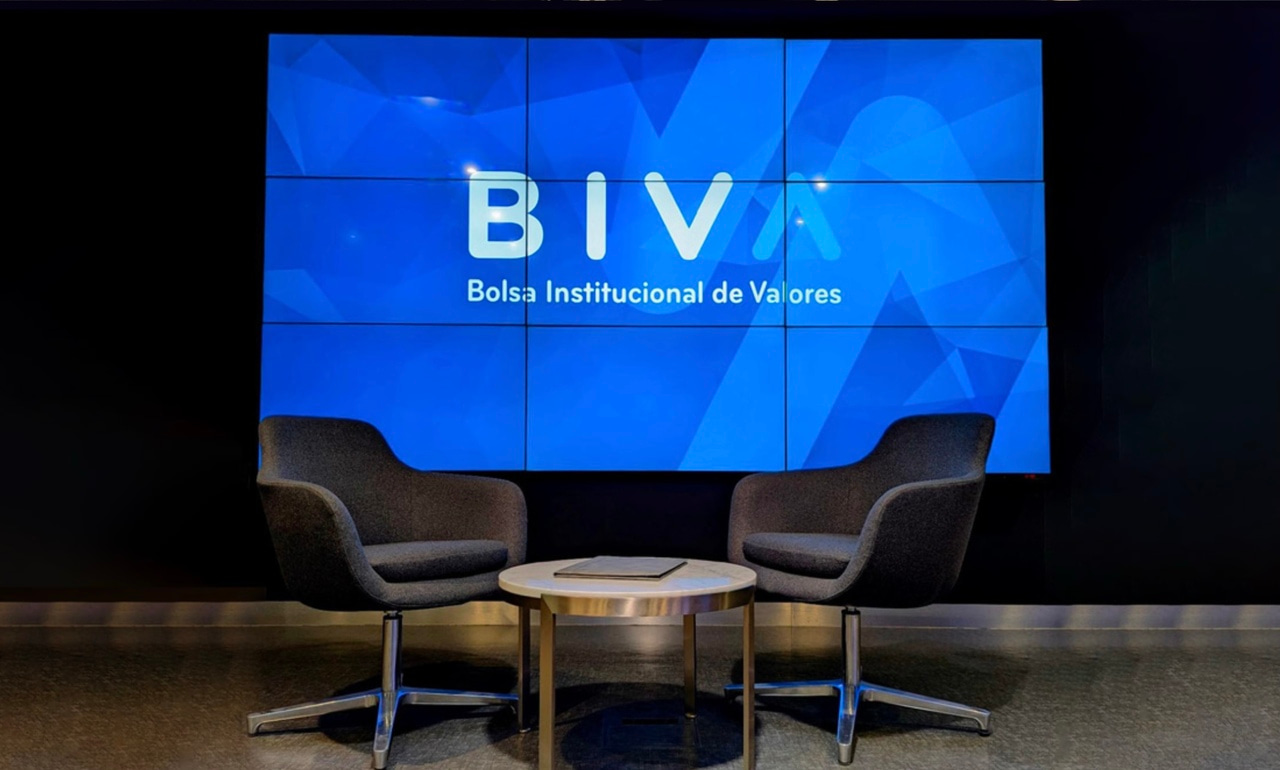

• Two 3×3 video walls

• A large-format LED screen managed by a Digibird processor

• Four 43” monitors used as teleprompters

• Auxiliary displays

• Dedicated monitors in the control room

Each of these elements is powered by MuxLab transmitters and receivers, ensuring flexible and uninterrupted content distribution. In common areas, displays were installed for financial data, corporate communications, live signage for visitors, and security monitoring.

In total, the installation included thirty-two 500759-RX receivers, twenty-two 500759-TX transmitters, two 500773-TX transmitters, three 500811 units, and one 500812 unit. All devices are managed through the MuxLab network controller’s graphical user interface, providing operators with an intuitive platform for real-time adjustments.

Here’s an interesting technical insight for integrators: centralized management made it possible to eliminate the need for third-party systems for control and advanced switching. This simplifies the architecture and reduces unnecessary layers.

From Traditional Matrix to Network-Based Matrix

A few years ago, when BIVA opted for an AV-over-IP architecture, the market was still debating between traditional matrix switching and network-based distribution. Today, in 2026, the convergence of AV and IT infrastructure is a standard approach in high-end corporate environments.

In retrospect, the decision did more than solve an immediate need. It anticipated the direction of the market.

Long-Term Reliability

One of the strongest aspects of this project is not just the initial installation, but its sustained performance.

Over six years of operation, the system has demonstrated stability and ease of use, supported by regional technical assistance.

Héctor García Díaz, Multimedia Production Specialist at BIVA, adds: “As the primary system operator, I can attest to the reliability and ease of use of MuxLab products over the past six years. The support team has consistently provided timely and effective assistance, which has been key to maintaining system performance and ensuring operational continuity.”

In the financial sector—where any disruption can have reputational impact—this is no minor detail.

Key Takeaways for the AV Industry

This project offers several valuable insights for integrators and consultants working with institutional clients:

1. Design for upgrades, not replacement: The transition from HD to 4K in 2023 shows that an IP-based architecture can evolve without rebuilding the entire system.
2. Separate technical complexity from daily operation: The operator does not need to be a network engineer. Interfaces must be intuitive and allow real-time adjustments during high-profile events.
3. Plan for redundancy and stability from the start: In financial environments, reliability is not a value-add—it is a requirement.
4. High-impact events demand rapid reconfiguration: The ability to change video wall layouts or distribute new sources without complex reprogramming is essential in environments with live broadcasts, press conferences, or critical announcements.

Infrastructure that Supports Institutional Reputation

More than an AV project, what BIVA built at Torre Esmeralda is a communication platform designed for growth.

In organizations where public image, transparency, and precision are part of the brand, AV technology plays a strategic role.

In this case, the decision to move toward an AV-over-IP architecture enabled the creation of a flexible, stable, and future-ready infrastructure.

If you are planning your next project and considering similar approaches, we invite you to visit MuxLab at InfoComm América Latina 2026, where their booth will showcase the latest innovations and their team will be ready to help you find the right solutions.

A version of this article was originally posted in Spanish.
