AV Installation Services Ripon

Definition Audio Visual has recently completed another professional AV installation Services at the Royal British Legion Care Home in Ripon. We were instructed to design and install a complete audio and visual system for both the main bar area and the chapel.
Like

Share this post

Choose a social network to share with.

This is a representation of how your post may appear on social media. The actual post will vary between social networks

Main Bar Area AV Installation

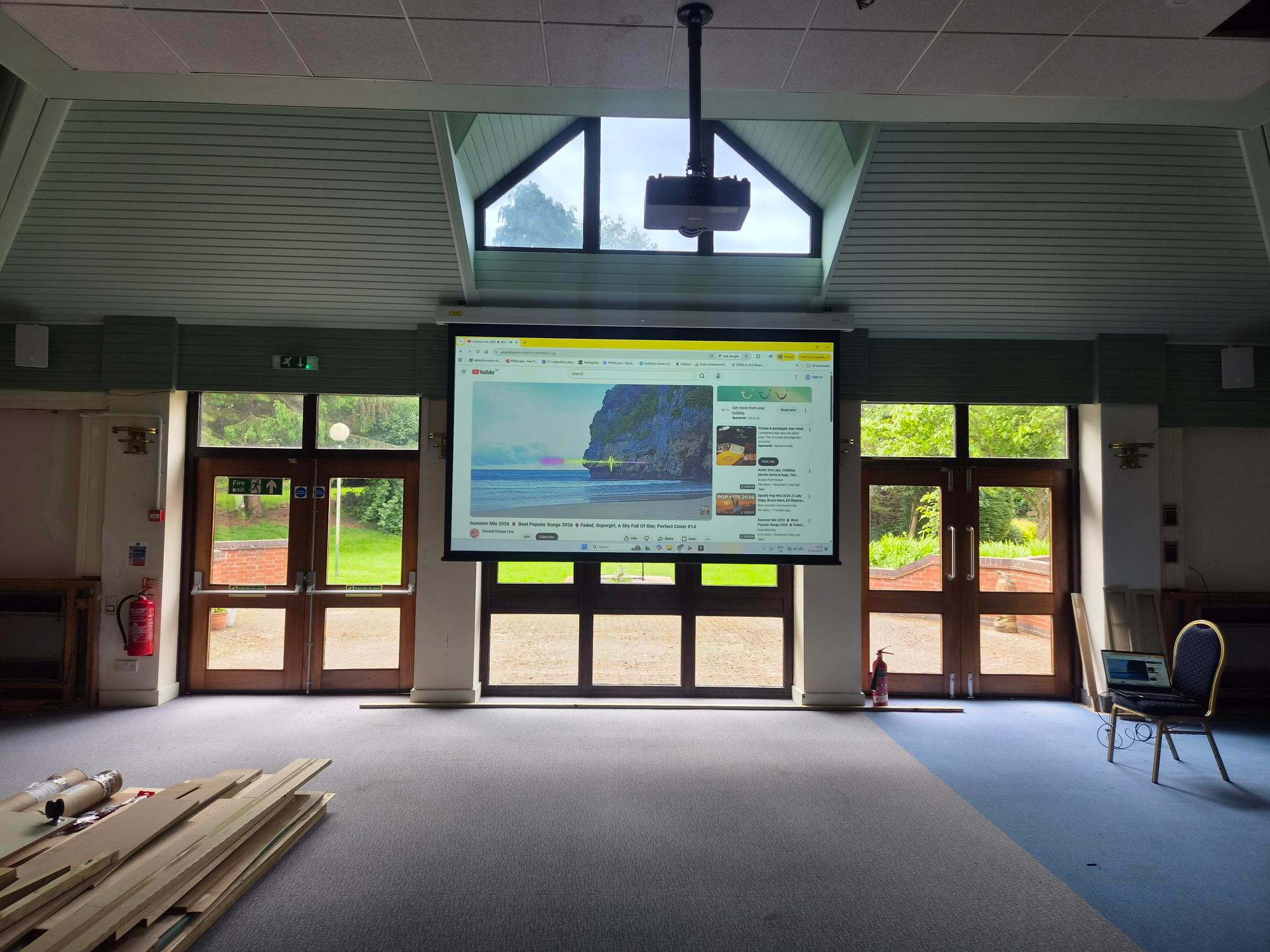

Within the main bar area, we installed an Epson 6200-lumen short throw projector projecting onto a Sapphire 3-metre motorised projection screen, providing a bright and clear image for residents and staff, for their meetings and showing films.

To allow simple local connectivity, we installed a Bluestream Active HDMI wall plate along with a Bluestream receiver, making it easy to connect external devices when required.

As the main room is also used as an overflow area for chapel services, we installed a Lumens 4K camera which allows live chapel services to be displayed on the main projection screen in the adjoining room.

We also installed a Panasonic DVD player so that residents can enjoy films and entertainment within the space.

Equipment Rack Installation

Within the equipment cabinet located in the storeroom, we installed:

  • Cloud 3-zone mixer
  • Two Sennheiser wireless microphone systems
  • Sennheiser antenna distribution system
  • Bluestream HDMI switcher
  • Tascam single CD player with Bluetooth receiver

This centralised rack system provides reliable audio and video distribution throughout the building while keeping the equipment secure, organised, and easy to maintain.

Main Room Audio System Installation

For the main bar area sound system, we installed four white Optimal Audio Cuboid 6 loudspeakers positioned in the corners of the room to provide even audio coverage throughout the space.

The speakers are powered by a Cloud XLi800 amplifier installed within the equipment rack, delivering clear and consistent sound for speeches, background music, films, and live chapel streaming.

Chapel Sound System Install

Within the chapel, we installed a pair of black Optimal Audio Cuboid 6TX loudspeakers powered by a Lab Gruppen 120-watt 100-volt line amplifier.

The system provides excellent speech intelligibility and balanced audio coverage for chapel services and events.

Outdoor Speaker Installation

For the outdoor areas, we installed an additional pair of black Optimal Audio Cuboid 6TX loudspeakers powered by a Lab Gruppen 120-watt 100-volt line amplifier.

This allows the care home to host outdoor events with clear and reliable audio coverage, whether they are playing music or need to make announcements outside.

Wireless Microphone System

By installing a Sennheiser wireless microphone system featuring both a handheld wireless microphone and a lapel microphone system, staff are able to use the microphones flexibly throughout the chapel, main bar area, and outdoor space

This provides a versatile solution for speeches, services, announcements, and events.

Auracast Hearing Assistance System

To improve accessibility for residents and visitors with hearing impairments, we installed the latest Auracast Bluetooth hearing assistance system complete with four Auracast receivers.

This modern hearing solution provides improved clarity and accessibility during chapel services, speeches, and entertainment events.

Professional AV Installation Services in Ripon

This AV installation provides the Royal British Legion Care Home with a flexible and easy-to-use AV system that supports entertainment, communication, live service streaming, accessibility, and outdoor events throughout the facility.

Definition Audio Visual specialises in professional AV installations for care homes, hospitality venues, community spaces, and commercial environments across Ripon, North Yorkshire, and the UK.
